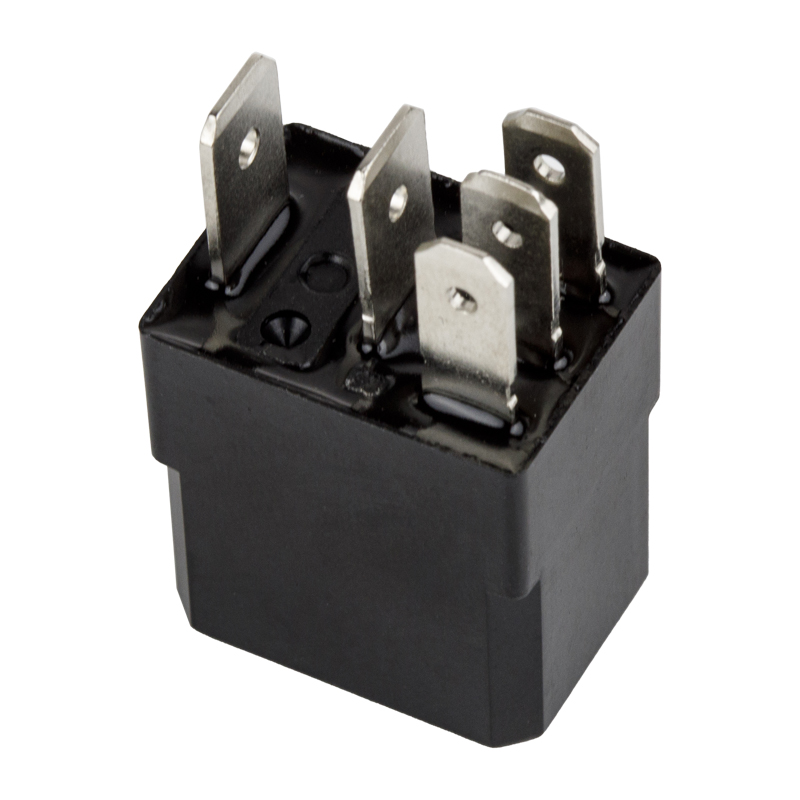

CONTACT DATA:
|
Contact Form |
1A/1C |
|
Contact Material |
Ag Alloy |
|
Contact Ratings |
1A:25A/14VDC 1C:20A/14VDC |
|
Max Switching Voltage |
75VDC |
|
Max Switching Current |
30A |
|
Max Switching Power |
500W |
|
Initial Contact Resistance |
100m Ω Max at6VDC 1A |
|
Life Expectancy Electrical |
100,000 Operations (rated load) |
|
Life Expectancy Mechanical |
10,000,000 Operations (no load) |
GENERAL DATA:
|
Insulation Resistance |
100M Ω min at500VDC |
|
Dielectric Strength Between Open Contacts |
500VAC 50-60HZ( 1 minute) |
|
Dielectric Strength Between Contacts And Coil |
500VAC 50-60HZ( 1 minute) |
|
Operate Time |
10ms max |
|
Release Time |
10ms max |
|
Ambient Temperature |
-40 ℃ to+85 ℃ |
|
Shock Resistance |
20G |
|
Vibration Resistance |
10-55Hz,1.5mm double amplitude |
|
Ambient humidity |
40-85% RH |
|
Weight |
Approx 18g |
|
Safety Standard |
|
COIL DATA : (@20 ℃ )
|
Rated Voltage (VDC) |
Coil Resistance Ω ( ± 10% ) |
Max Operate Voltage (VDC) |
Min Release Voltage (VDC) |
Max Applied Voltage (VDC) |
|
1.8W |
|
|
|
|
|
12 |
80 |
7.8 |
1.2 |
15.6 |
|
24 |
320 |
15.6 |
2.4 |
31.2 |
PC Board Layout & Wiring Diagram (Bottom View)
